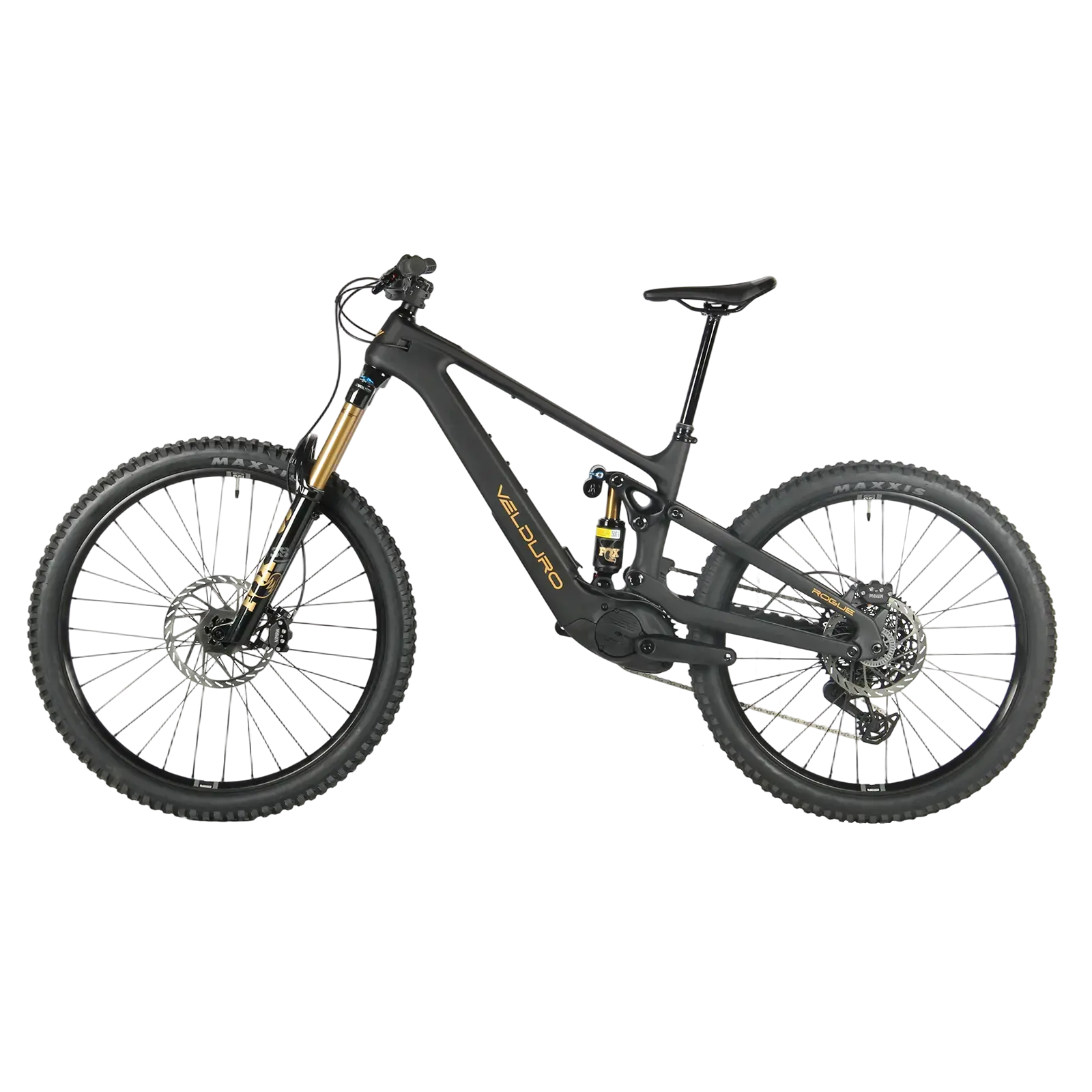

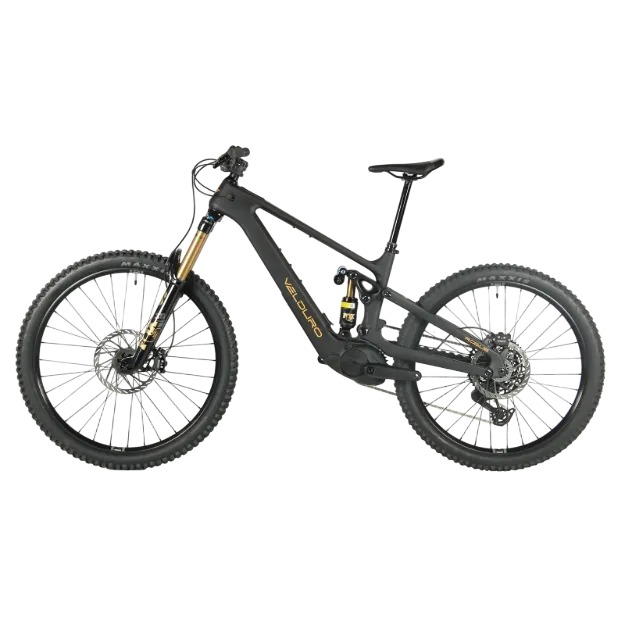

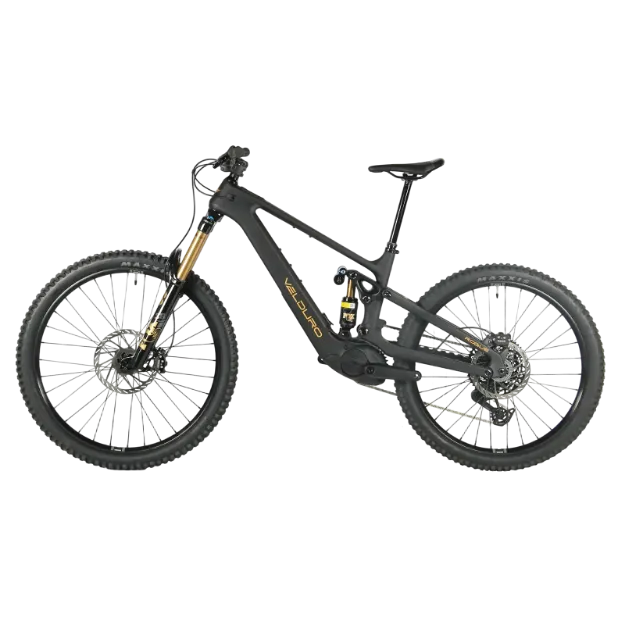

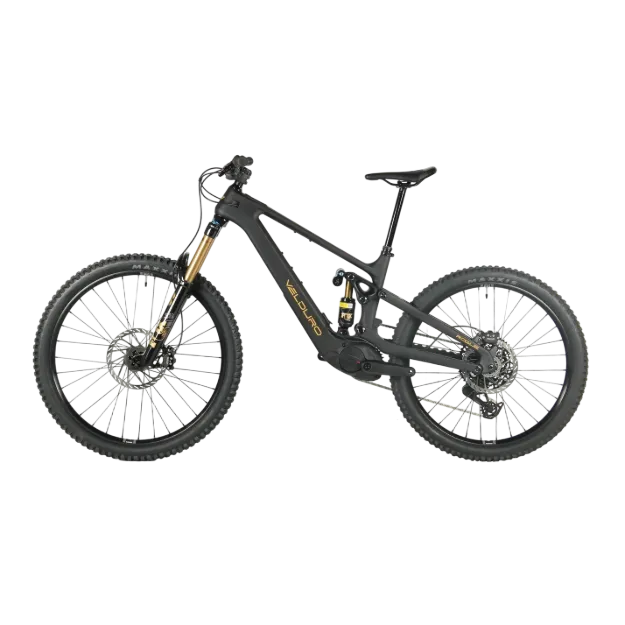

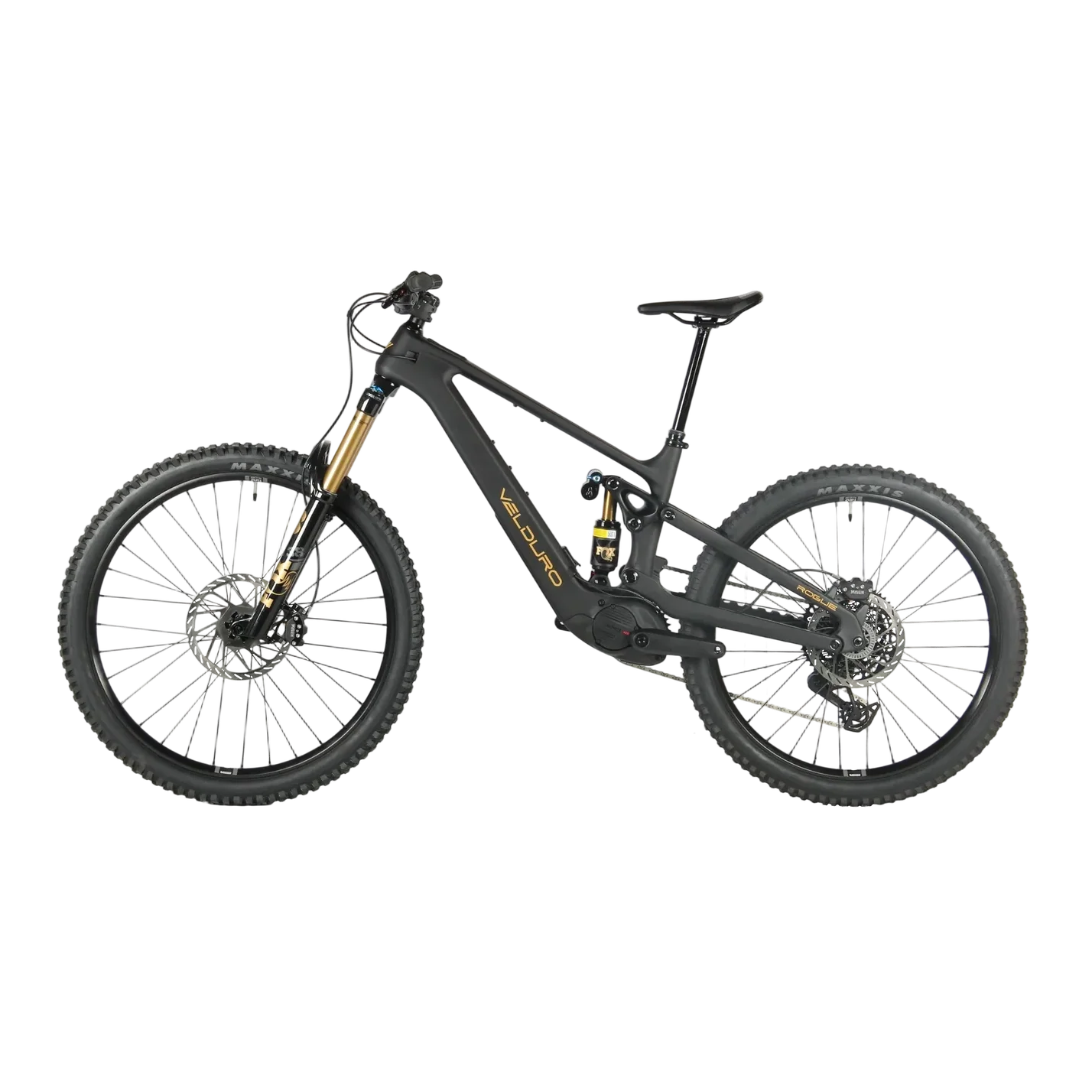

Meet the Rogue R. Engineered for the ultimate MX enduro experience. Featuring custom-tuned FOX suspension, SRAM AXS GX Eagle 10-52T drivetrain, and powerful Maven Silver four-piston brakes, this bike is built to perform. Weighing just 23.6 kg and powered by an 800 Wh battery, the Rogue R delivers all-day capability with i-track enhanced suspension for unmatched control and responsiveness on any terrain. This is the ultimate DJI-powered enduro EMTB!
Specs
Avinox Drive System
Motor: AVINOX M1 105 Nm 850W
Battery: 800 WH
Charger: AVINOX M1 36V 4A
Display: AVINOX M1 DP100
Frame & Cockpit
Carbon fibre enduro frame,
-165mm rear travel, up to 170mm with 27.5 rear wheel
- mid-pivot
- battery integrated
- rear wheel flip chip
- shock position flip chip
- inner cable routing
- Boost 12x148mm
-16T idler, with oversize bearings.
Headset: FSA No.57 Alloy MTB ZS44/56
Saddle: Fizik Terra Aidon X5
Seat post lever: ONEUP Dropper lever V3.1
Seat Post Clamp:ONEUP KIT 22.2
Dropper:ONEUP V3 mechanical Dia.31.6
S: 180mm travel, M/L: 210mm travel,
XL: 240mm travel
Handlebar: OneUp, alloy, 800L, 35R.
Stem: ONEUP Stem 42mm forged
Grips: Velduro: thick grips - Black.
Drivetrain, Brakes & Cranks
Brakes:Sram Mavan Silver 4- Pistion hydraulic brake
Discs: Sram HS2 disc front 220 , rear 200mm
Pedal: Riders Choice
Shift lever: Sram AXS pod controller
Rear Derailleur: Sram AXS GX eagle transmission derailleur w/ power cable
Crankset: Avinox SL crank 155mm
Cassette: Sram XS-1275 10-52T
Chain :Sram GX Flat top Chain
Chainwheel Sram EMTB Eagle 34T
Wheels & Tires
Wheel set: Velduro e-Enduro carbon, EC-30
Front Hub: Alloy, 2 sealed cartridge bearings, 15x110 thru-axle, 28h,
straight-pull, 6-bolt
Rear Hub: Alloy, 4 sealed cartridge bearings, 148x12 thru-axle, 28h,
straight-pull, 6-bolt, 78T
Spokes: Sapim e-light straight pull
Rim: Carbon,F 29’/R 27.5’, 30mm internal width
Front tire: Maxxis Assegai M356Ru 29*2.5 3C Grip/DD/TR BK
Rear tire: Maxxis Minion DHR2 M327 Ru27.5*2.4 3C Terra/DD/TR BK
Your Rogue is tubeless ready, but comes with tube.
Suspension
Fox 38 F-S 2026, 29 inch, 170mm,
Grip X2, 15X110mm
Fox float X2 F-S 2026, 205X65mm (custom factory tuned for the Rogue)
