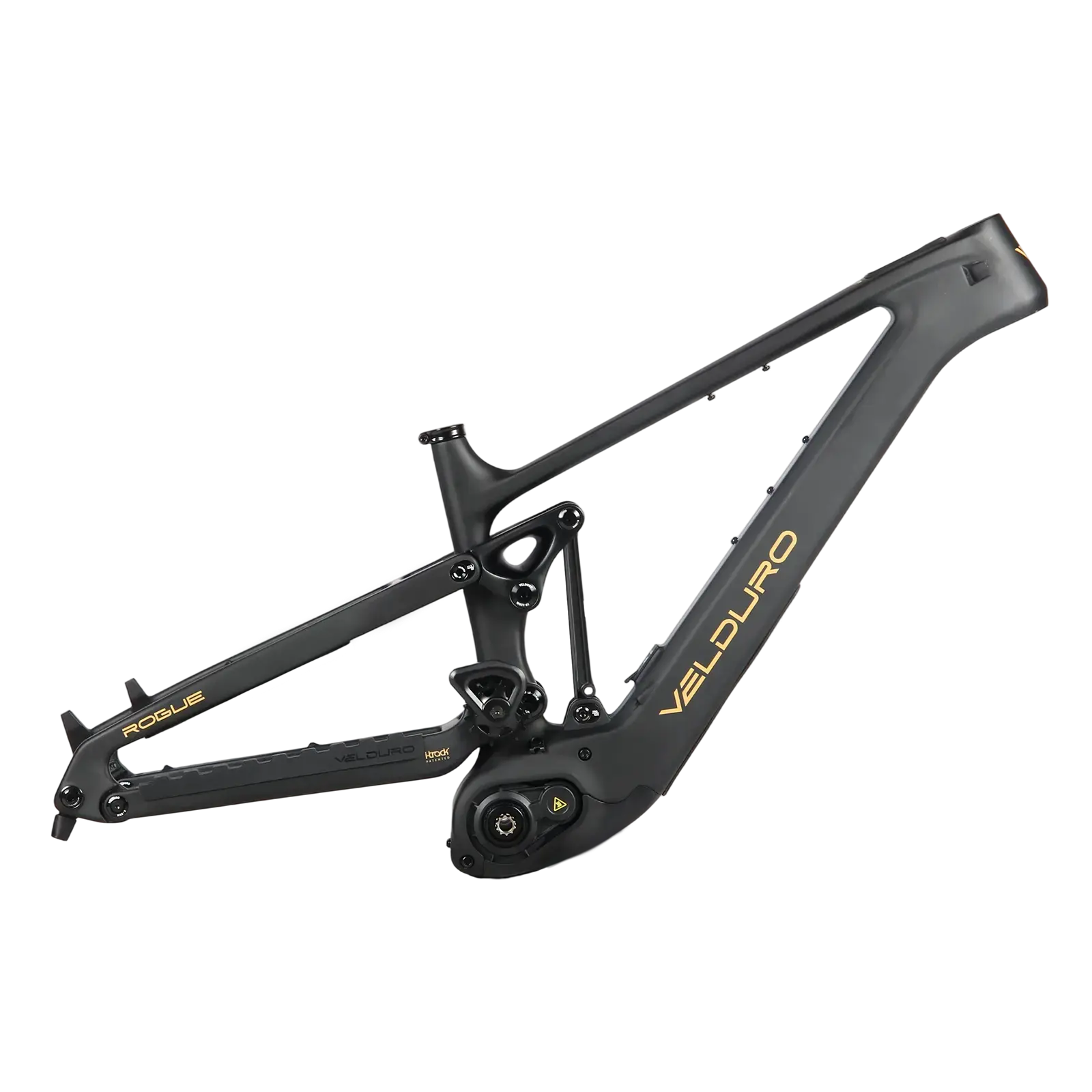

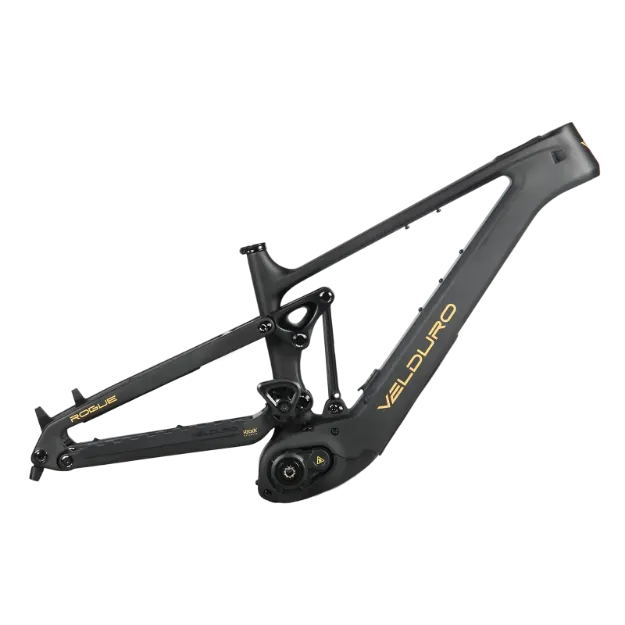

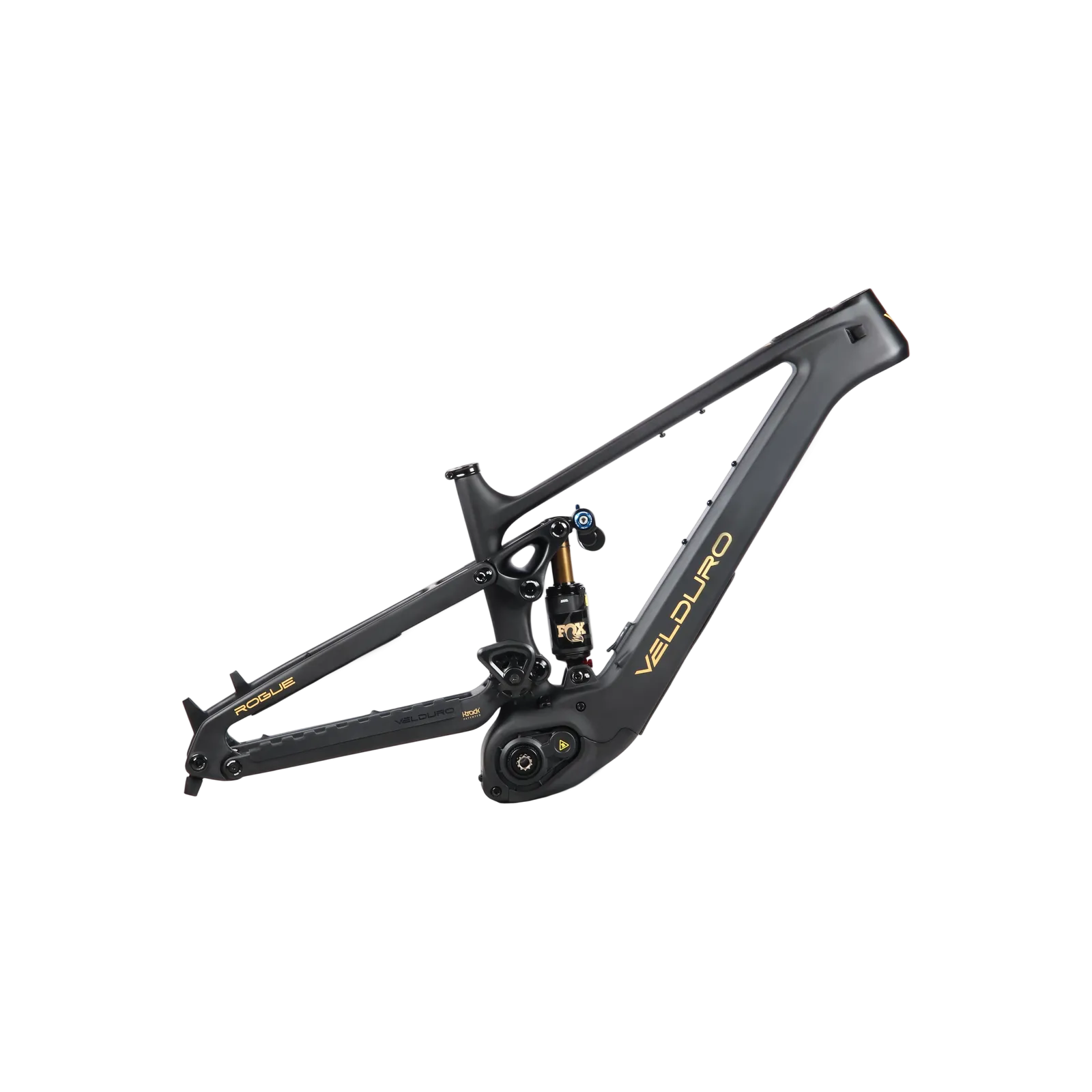

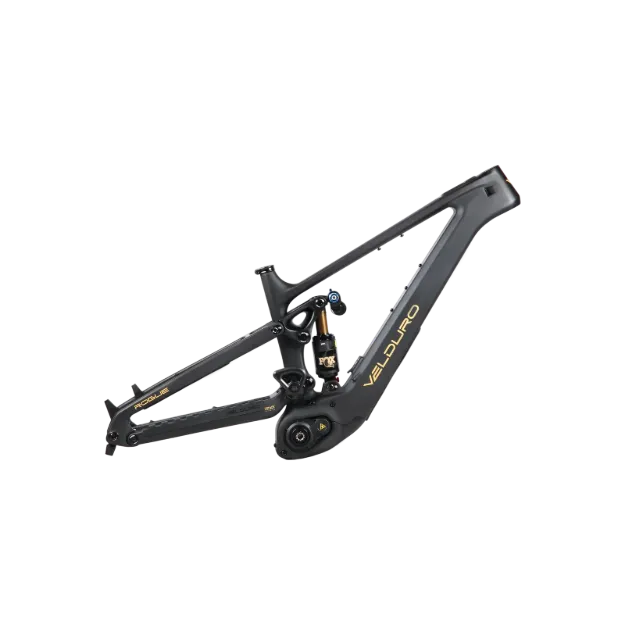

Velduro Rogue Avinox M2S E-Bike Frame

Manufacturer: Velduro
€4131
Avinox M2S Motor
Carbon Fibre Monocoque Frame
I-Track suspension
Shock Flip Chip
Mullet or 29er
Warranty: Frame 5-Years | Avinox Drive System 2-Years
Frame-only does not include rear shock
*
+ -
Build your dream EMTB with Velduro.
Using flip chips the Rogue's modular frame can adapt to your needs and riding style. Swap the travel, tweak geometry or switch wheel sizes and customise your ride to create your Dream Machine.
In Standard Mode (170mm fork / 165mm rear with MX wheels), it's a trail-taming beast. Switch to All-Mountain Mode (160mm front/rear with MX wheels) for flowy precision, or unleash Enduro Mode (180mm front / 172mm rear with 29inch rear wheel) to dominate descents.
The Rogue is powered by the DJI Avinox M2S drive system and 800wh battery.

Frame only option includes

Carbon fibre frame

Mid-pivot suspension, rear travel 165mm up to 172mm with 29inch rear wheel, rear wheel flip chip, shock clip chip,

Boost 12x148mm thru axle

Headset: FSA No.57 Alloy MTB, ZS44/56

Motor: Avinox M2S 130Nm, boost to 150nm & 1300W peak power

Battery: Avinox 800Wh integrated

Display: Avinox DP100 integrated 2-inch display

Button: Avinox BC100 Wireless control left & right

Charger: Avinox 4A charger

Cables: Avinox customised Waterproof and foolproof wiring

Associates: UDH Hanger, Seat post clamp, Cable lugs

Avinox Cranks - SL 155mm

Avinox 104 BCD Spider, velduro 34T Chainwheel

Seatpost Dia 31.6mm. Insert depth S: 260mm, M:280mm, L:300mm, XL: 325mm

Recommended dropper travel: S:180mm, M & L: 210mm, XL: 240mm

Dropper cable length: 1200mm

Seat Clamp Dia 35mm

Rear brake frame standard: post mount 203mm
