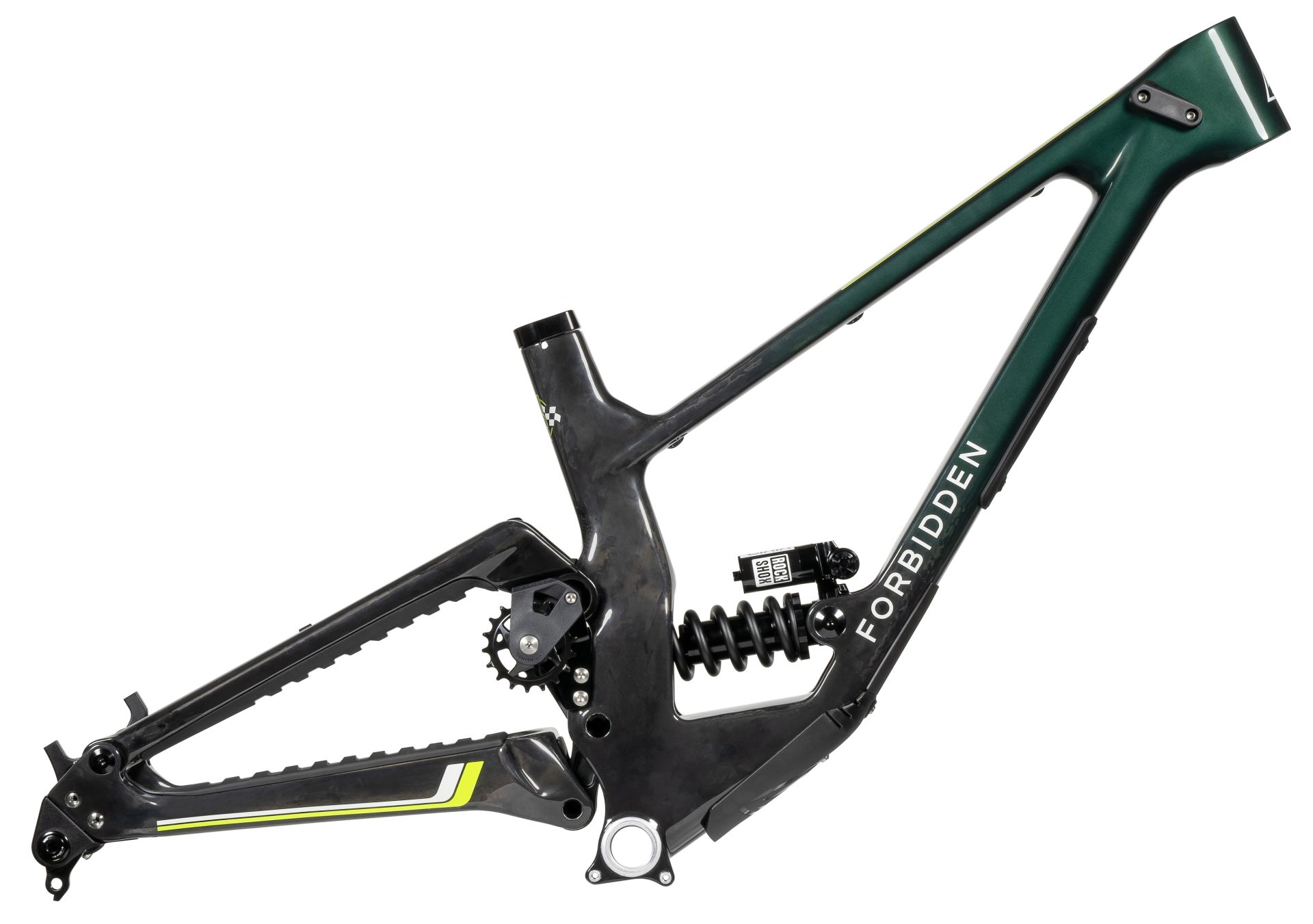

Forbidden Supernought Frameset Bri'ish Racing Green

Manufacturer: Forbidden
18.404 RON
This bike is designed and built for a single purpose: Get you down the hill faster!
INTENDED USE: DH Racing
SUSPENSION: 205mm Rear / 200mm Front
WHEEL SIZE: Ful 29er or MX
Limited Lifetime warranty
+ -

Finally, the big cat is completely out of the bag. It’s been a while since our prototype DH bike was first spotted on the WC stage under Connor Fearon. Since then we’ve been honing every detail and specification to ensure this bike is comprised purely of the material needed to deliver a fighter jet of a downhill mountain bike. There is no filler here, folks. This bike is designed and built for a single purpose: Get you down the hill faster.

So, what happens when you ride a bike with the industry’s most refined high pivot design equipped with 205mm of rear wheel travel? You remain composed and comfortable across the knottiest root balls and rowdiest rock gardens. You develop a new penchant for committing to corner speeds and line choices that old-you would never dream of. You go in over your head and get out with a shit-eating grin. You get a DH bike with zero compromises.

You get Supernought.

FRAMESET Includes:

FRAME

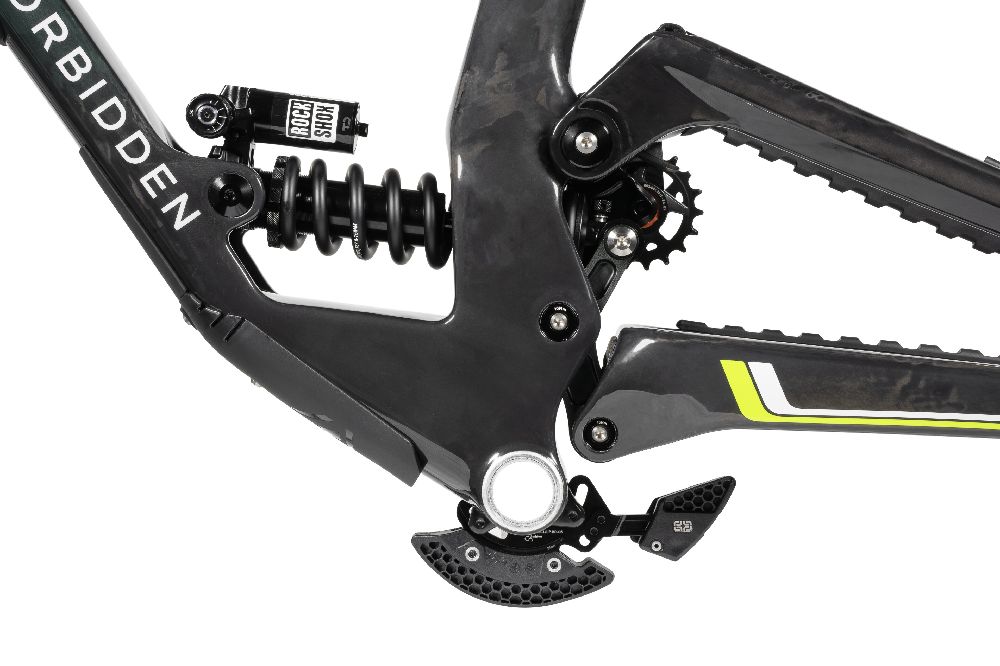

Supernought Full Carbon - 200mm Travel High-Modulus Carbon Fiber | Trifecta V2 High Pivot 4-Bar Suspension | One Ride Geometry | Enduro Max Bearings | 83mm Threaded BSA Bottom Bracket
REAR SHOCK
RockShox Super Deluxe Coil Ultimate R55C26 BT C C1 Tune | 225x75mm | Spring Weights: S1 - 300 | S2 - 350 | S3 - 400 | S4 - 450
SEAT POST CLAMP
Forbidden 7075 CNC Aluminum | 34.9mm | Black Anodized
UPPER CHAIN GUIDE
Forbidden HD Guide
LOWER CHAIN GUIDE
e.13 | LG1 Plus ISCG05 | 28-34T | DMB | Lower Roller

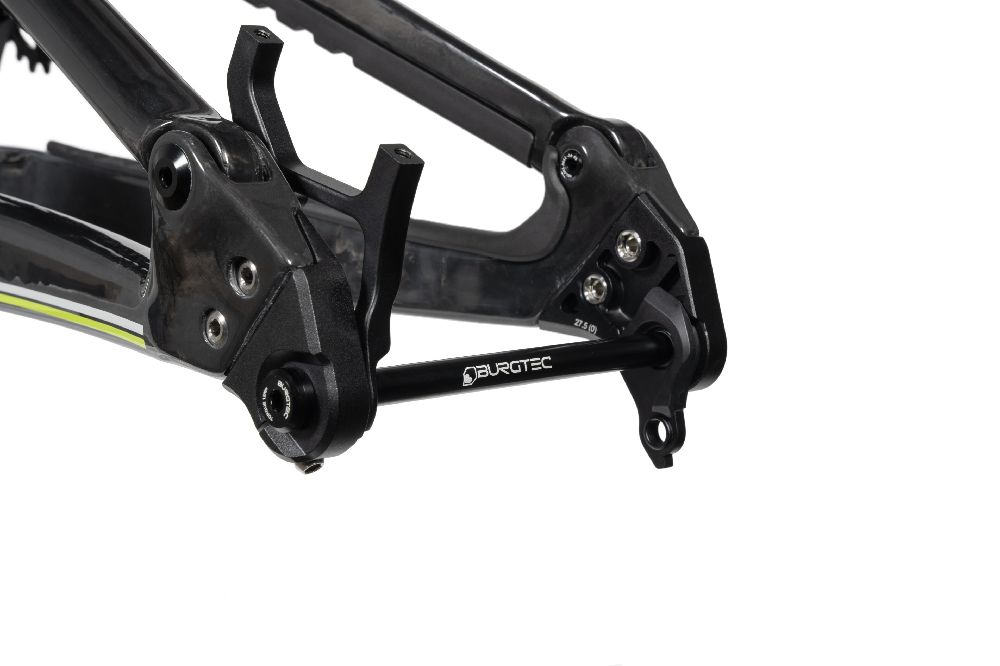

REAR AXLE
Burgtec 180 x 1.0mm Axle UDH
Included
SRAM Universal Derailleur Hanger


FORK LENGTH (MAX.) 611mm
RECOMMENDED FORK OFFSET 46mm
SHOCK LENGTH (EYE-EYE) 225MM
SHOCK STROKE 75mm
SHOCK HARDWARE 30x8mm Lower | Trunnion Upper
HEAD TUBE DIAMETER UPPER 49mm (49.57 - 49.61mm)
HEAD TUBE DIAMETER LOWER 49mm (49.57 - 49.61mm)
S.H.I.S ZS49/28.6 EC49/30
REAR DROPOUT SPACING (O.L.D) 148mm
REAR AXLE SPECIFICATION L180mm / TL 20mm / TP M12 x 1.00
BOTTOM BRACKET 83mm BSA Threaded
CHAIN LINE (CL) 56.5mm
MAX CHAIN RING S1: 32T S2: 34T S3: 36T S4: 38T
CHAIN LENGTHS S1: 110L S2: 112L S3: 114L S4: 116L
SEAT POST DIAMETER 31.6mm
MAX SEAT POST INSERTION S1: 200mm S2: 215mm S3: 232mm S4: 260mm
SEAT CLAMP DIAMETER 34.9mm (Included)
BRAKE MOUNT 200mm Post Mount
ISCG 05 Lower Tabs Only
RECOMMENDED TIRE SIZE 29 x 2.4
MAX TIRE SIZE 29 x 2.5
