FRAMESET Includes

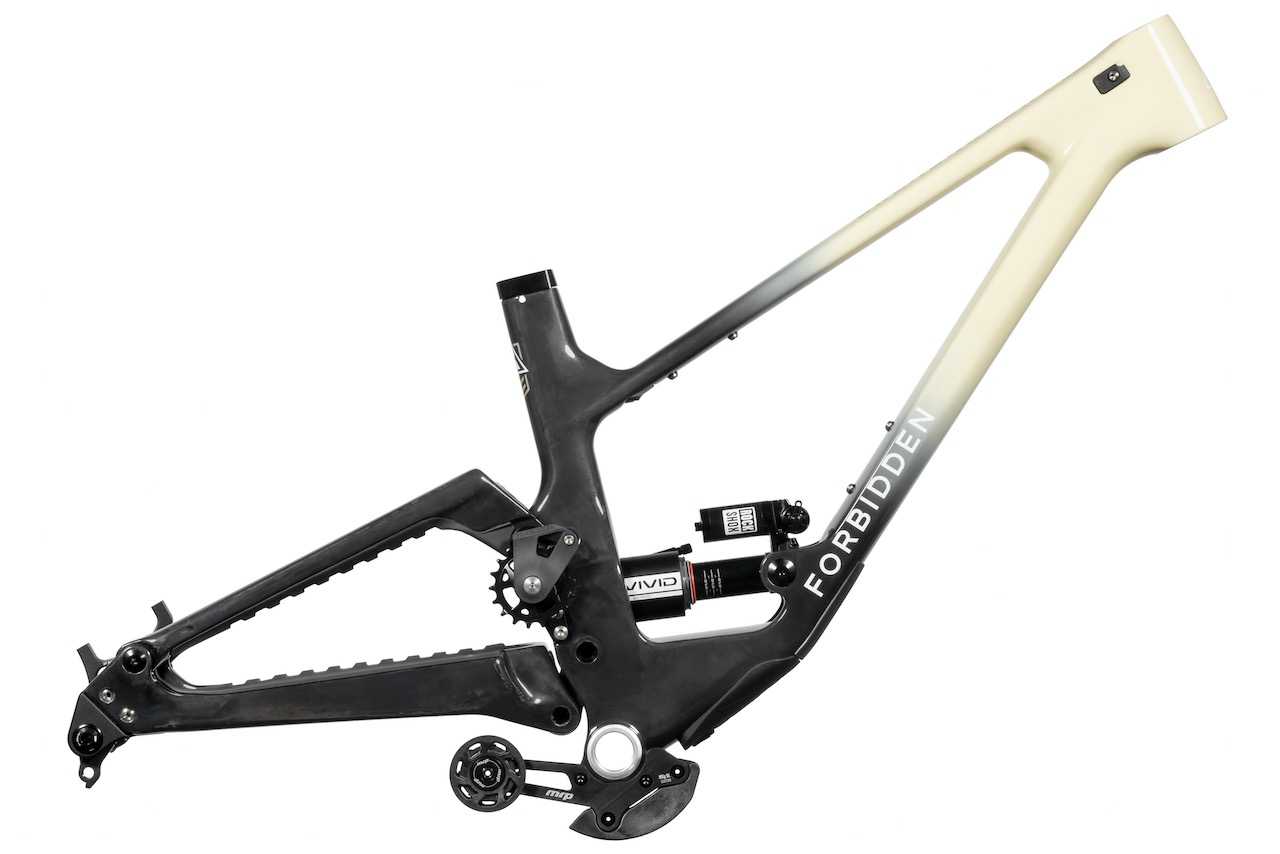

FRAME: Dreadnought V2 Full Carbon - 160mm Travel
High-Modulus
Carbon Fiber | Trifecta V2 High Pivot 4-bar Suspension | One Ride
Geometry | Enduro Max Bearings | 73mm Threaded BSA Bottom Bracket
Rear SHOCK: RockShox Vivid Ultimate
R85 C26 Tune | 205mm x 65mm | Touchdown RC2T| Rebound, High and Low Speed Compression, Hydraulic Bottom Out Adjust | Lock
SEAT POST CLAMP: Forbidden
7075 CNC Aluminium | 34.9mm | Black Anodized
UPPER CHAIN GUIDE: Forbidden Race Guide
LOWER CHAIN GUIDE: MRP | MXg | Custom 2 Bolt Fixed Backplate | ISCG 05 Standard
ISCG05 | Custom 2 Bolt Fixed Backplate
REAR AXLE: SRAM Maxle Stealth
DERAILLEUR HANGER: SRAM Universal Derailleur Hanger
DROPOUTS: 29" 0 and 27" 0 Position Dropouts
Trifecta V2 Platform
Dreadnought
now sports an inverted four-bar suspension design. This evolution was
necessitated by our desire to retain the original ride characteristics
of the original Dreadnought while optimizing certain ride
characteristics. At the same time we bring the Dreadnought in line with
our S - sizing.
Hardware
The
bearing-in-rocker design of our new forged V2 Rate Control linkage
allows us to locking collet axles and oversized bearings for easy
maintenance and dependability. This option isn't the lightest but
trading a few grams for a long-lasting, easily serviced linkage, was the
practical choice
Modular dropouts
Wheel
size configurations changes are achieved via modular dropouts.
Meaningful geometry and weight bias adjustment are also made via 27.5"
+10mm, 27.5" -10mm, and 29"
+10mm dropouts. Giving riders the option to customize weight bias and
handling characteristics to suit riding style or terrain types. 200mm
direct brake mount included as standard. Framekits are sold with MX and
29" dropouts.
Cable routing
Our
adaptable cable routing allows you to nearly route the cables and hoses
no matter where in the world you come from or with what hand you
operate your rear brake with. New for V2 bikes is the inclusion of
clamping hose/cable ports on the rear triangle. This ensures no unwanted
movement anywhere along the frame.
Water bottle fitment
Even
our smallest Dreadnought frame size can fit a full size 26oz water
bottle. Remember, hydration is your friend, but sweaty backs most
definitely are not.
Frame protection
A quiet bike is a fast bike and a clean bike is less prone to problems, so we developed a full suite of custom frame protection to keep the noisy bits quiet and the hard to clean bits free from crud.
Accessory mount
The
'under the top tube' mounting screws allows for the attachment of
various accessory mounting solutions: pump, tools, a banana, the kitchen
sink, go crazy, just don't hang a water bottle there, please.
Sensible standards
Threaded
BB, boost rear wheel spacing, press in headset cups - we only use what
makes sense from a design and durability standpoint. you won't find any
questionable trends here - looking at you headset cable routing.
