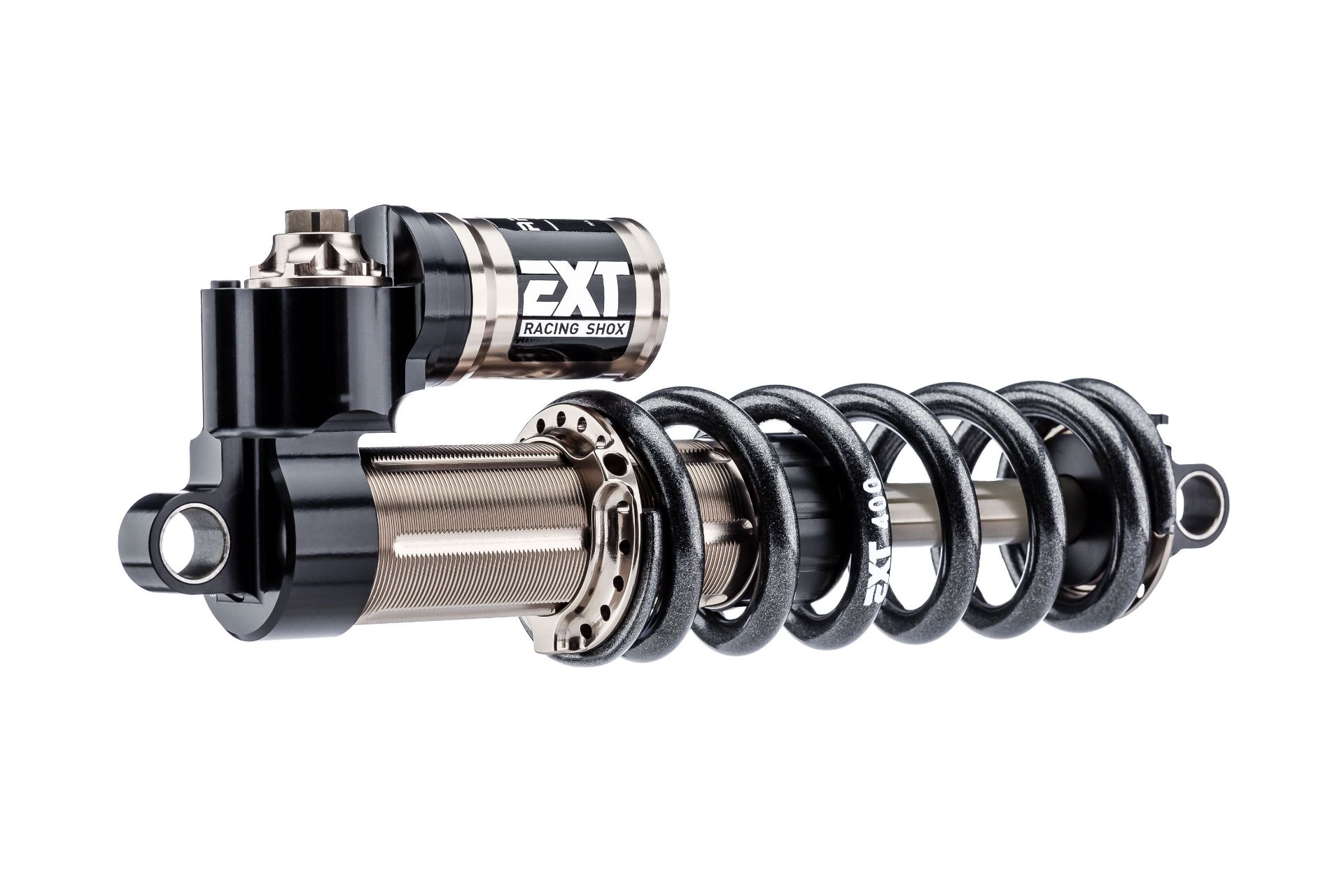

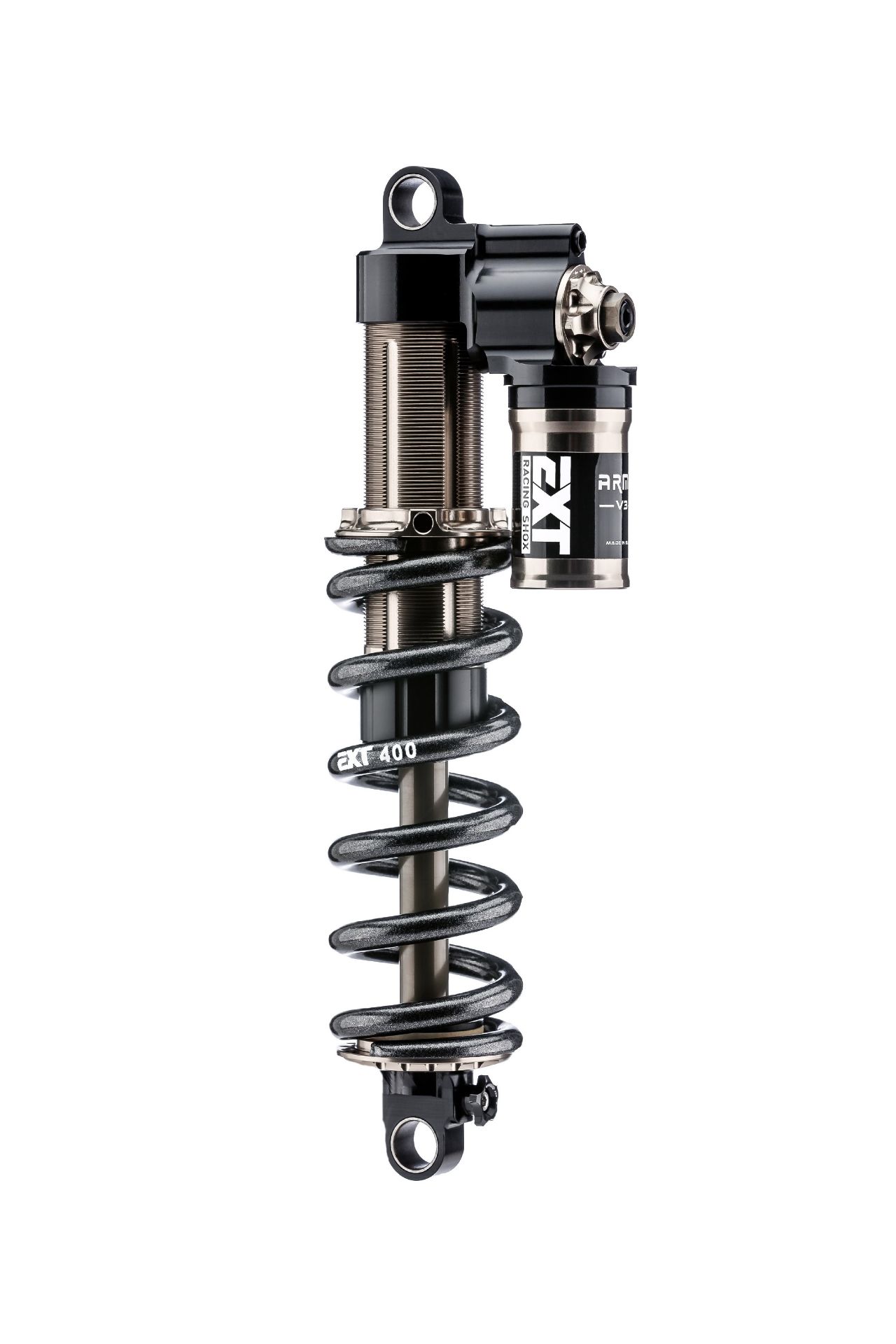

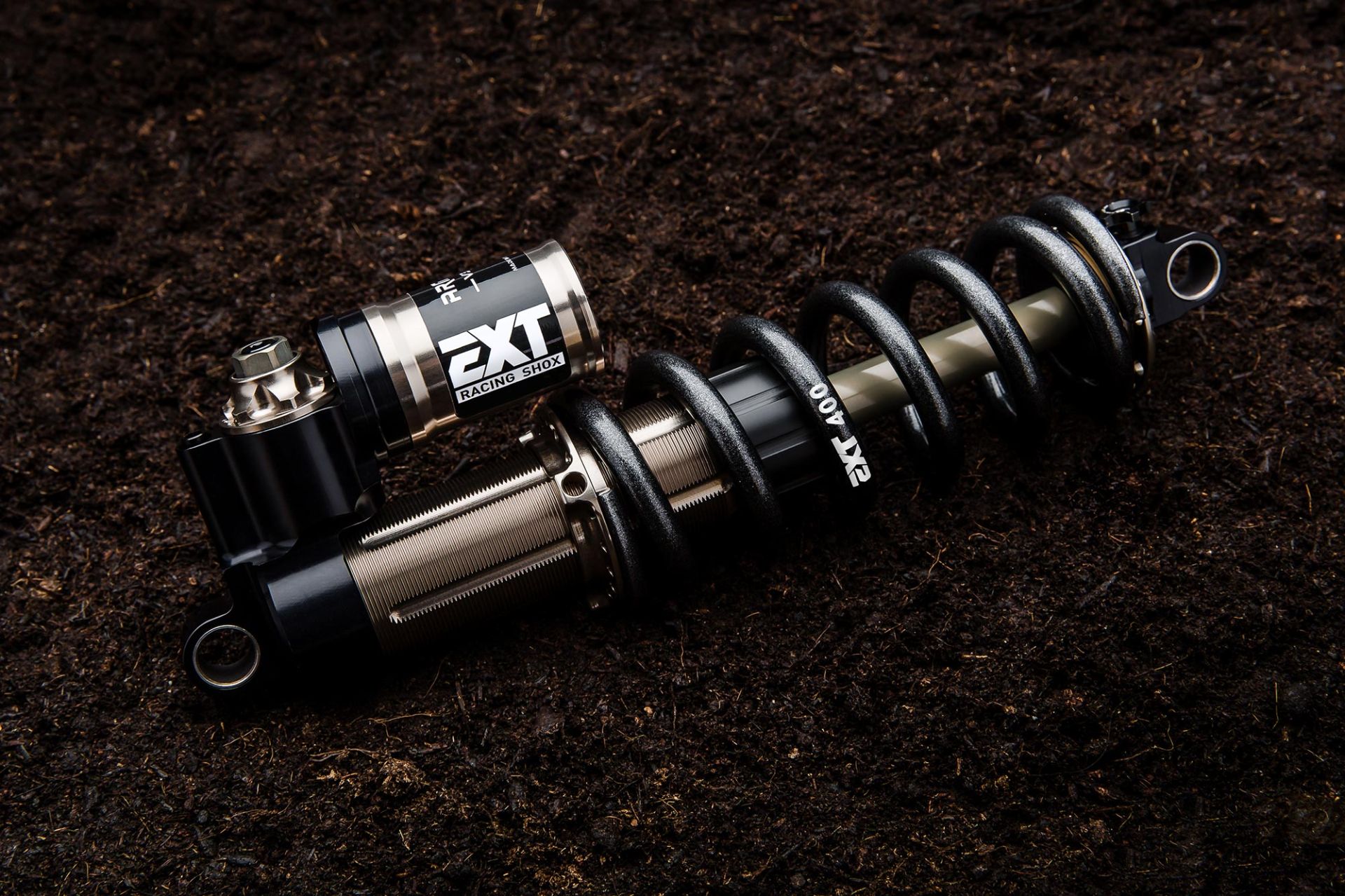

EXT ARMA V3 Shock

ARMA V3 is designed to serve those riders who want a coil feel shock with a very high bump sensitivity but at the same time having a strong bottom-out support.

Engineered with a downhill racing-focused product in mind, the shock structure has seen a new design in order to be more frame friendly, with a metric and an imperial sizing, and both classic eye to eye and trunnion mounts.
HBC has been enhanced with a wider range of adjustment, in order to prevent bottom-out issues, while allowing riders to use softer spring rates and still have good support.

• Metric and Imperial sizing – Standard or Trunnion mount
• 4 way adjustable (LSC-HSC-LSR-HBC)
• High flow Ø29 mm main piston
• Ø24 mm valve piston
• Ø14 mm shaft
• Engineered rebound circuit to separate bump and rebound oil flow
• Ultra low-friction coating
• User adjustable HBC technology with wider range
• Very low reservoir pressure for maximum sensitivity (55 PSI)
• Full custom hydraulic setup available
• No cavitation
• Very low hysteresis for high dynamic response
• High turbulent flow for very low temperature depending
• Low friction Energize seal
• Thinner bottom-out bumper
